Jane's roll top Brompton bag - pattern:

Return to main bag page

There are 2 sets of pattern pieces: the inner + outer backs and pockets, which are common to both bags, and the standard and larger size front and base pieces.

All seam allowances are included.

Print out the pattern pieces and scale them up to full size. I find squared pattern paper useful for this.

Common pattern pieces:

Inner and Outer back pieces

{Back bits}

Rear pockets{Rear pockets}

Standard bag size:

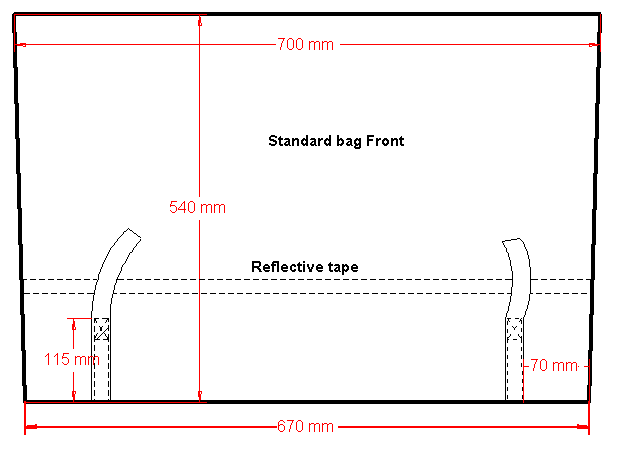

Front{Standard bag front}

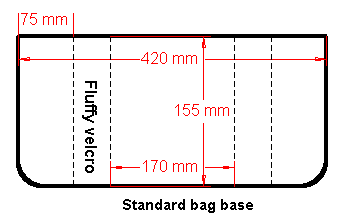

Base{Standard bag base}

Larger bag size:

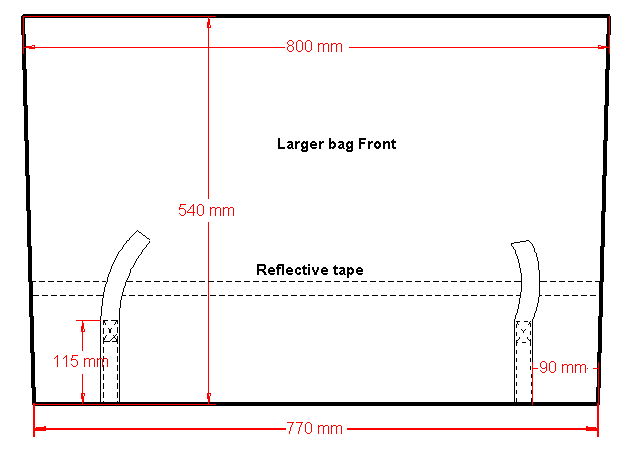

Front{Larger bag front}

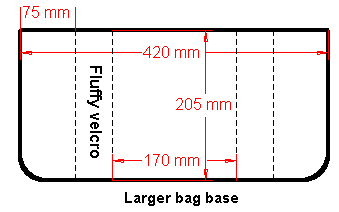

Base{Larger bag base}

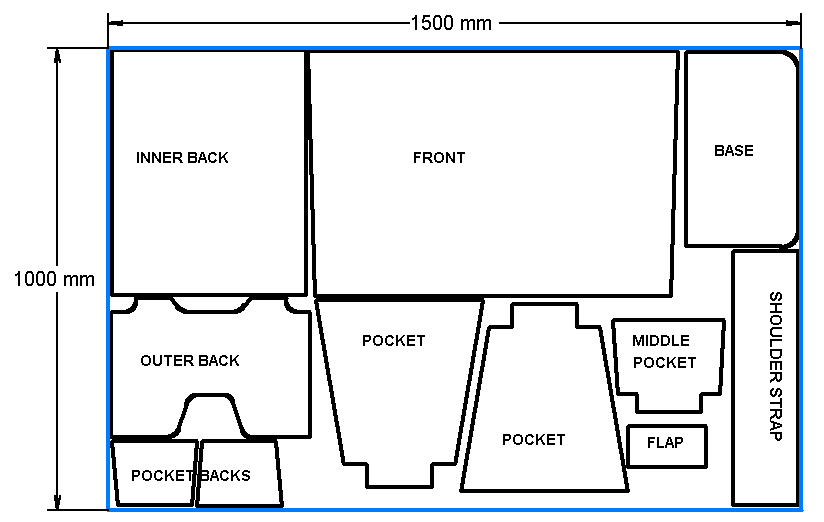

Sugested layout:{Layout}
